Building a VPC and Migrating the Backend Terraform State to an S3 bucket!

2024-12-29 3 min read Projects Barny Baron

Journey: 📊 Community Builder 📊

Subject matter: Building on AWS

Task: Building a VPC and Migrating the Backend Terraform State to an S3 bucket!!

This week, I used Terraform to create a VPC with a single EC2 instance and then promoted the instance to a Domain Controller. Once this was created, I migrated the local backend Terraform state file to an S3 bucket.

In this scenario, I configured the VPC with multiple availability zones and promoted EC2 instance to a Domain Controller using userdata parameters, all done via Terraform. I then used Terraform to move the state file to a centralised area, best placed for collaboration.

Resource credit: This migration pattern was created using guidance from Jack Roper Here.

What did I use to build this environment?

Visual Studio Code platform
Terraform
AWS CLI
AWS Management Console

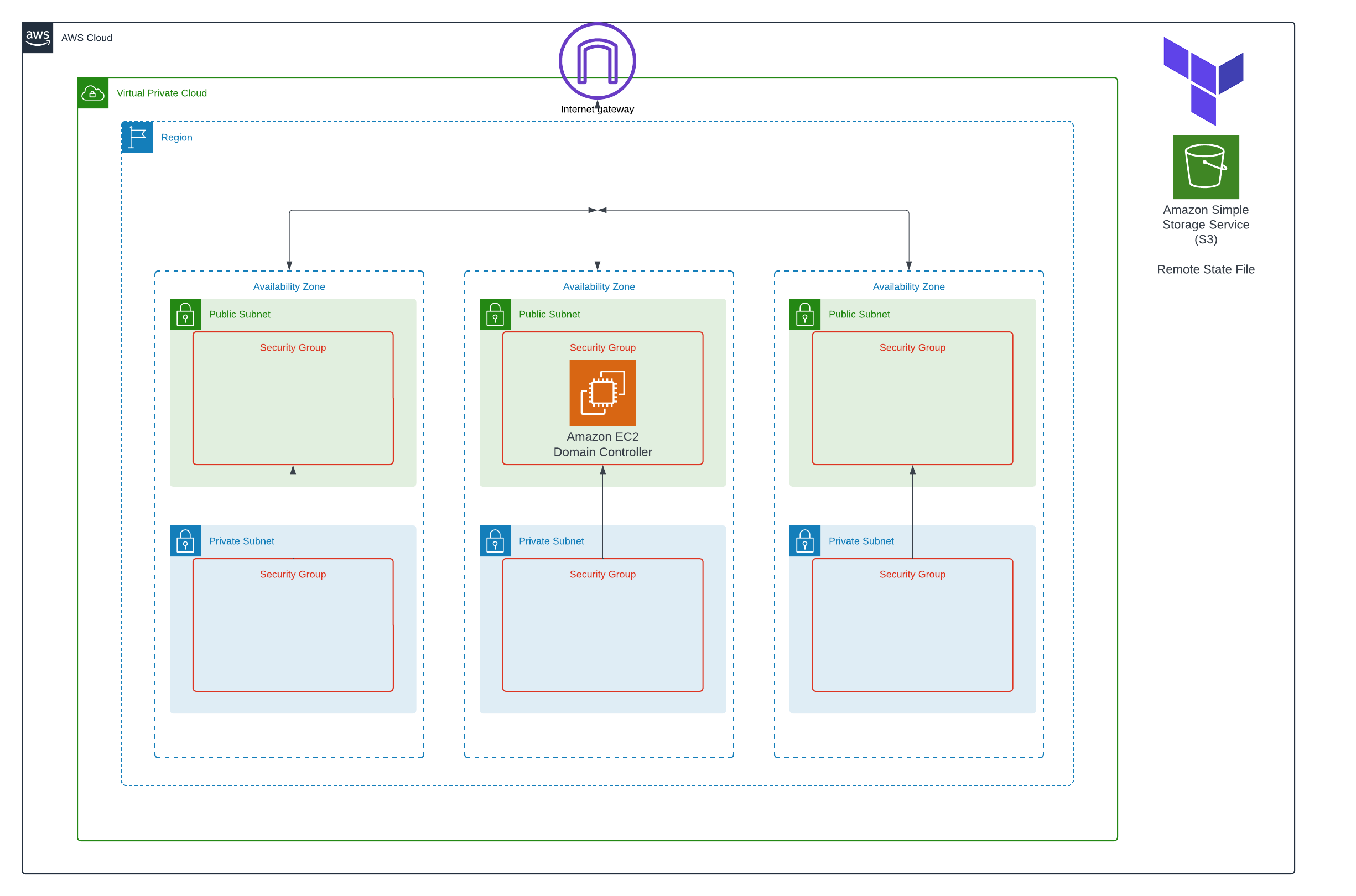

What is built?

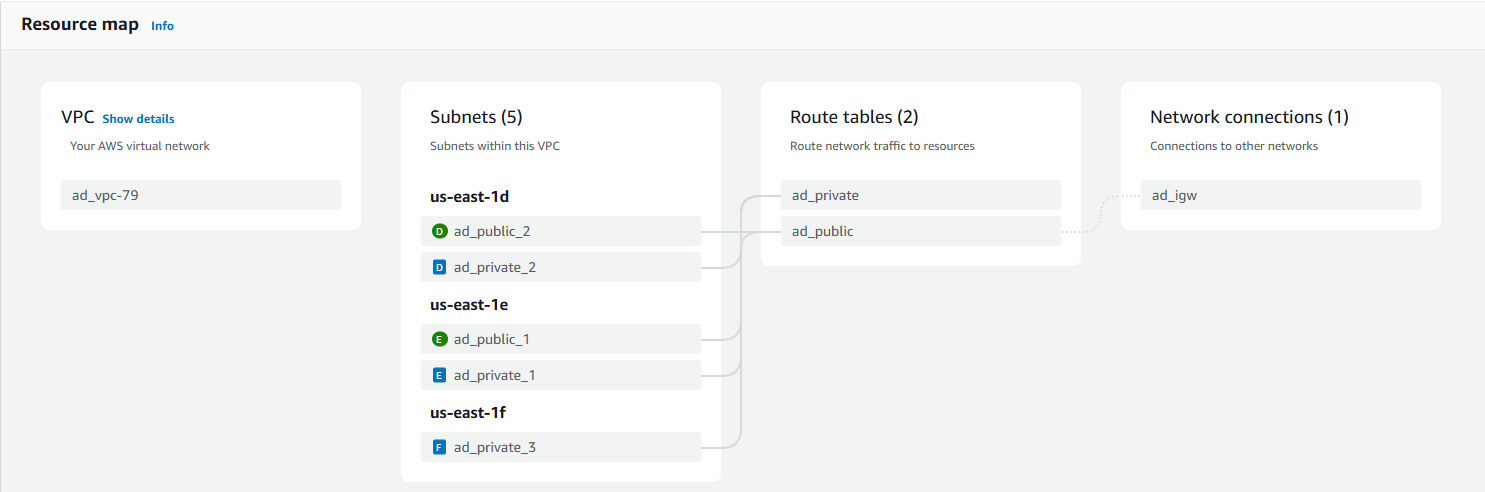

A single VPC with multiple AZs
Public and Private Subnets
Custom Route Tables
Internet Gateway
NACLs and Security Groups
An EC2 instance, promoted to a Domain Controller

Building off the back of the last project I created Here.

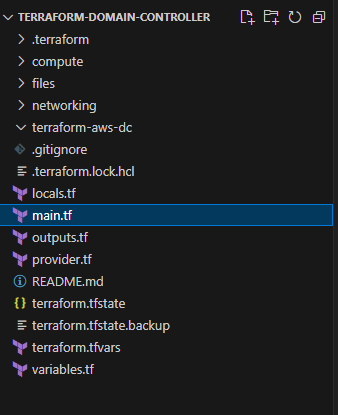

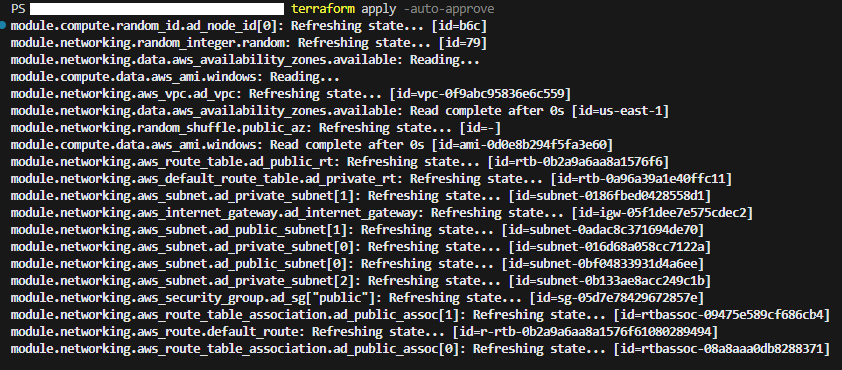

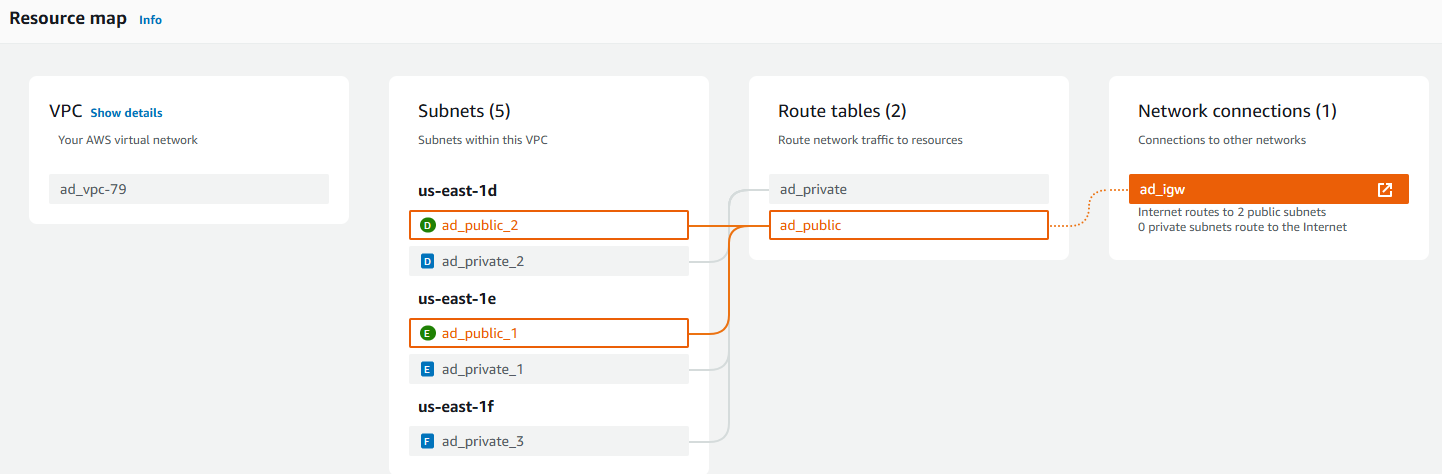

In this task, I used Terraform modules and tfvars to create a VPC with two public subnets and three private subnets. In one of the subnets, I requested an EC2 instance be provisioned inside one of the public subnets at random.

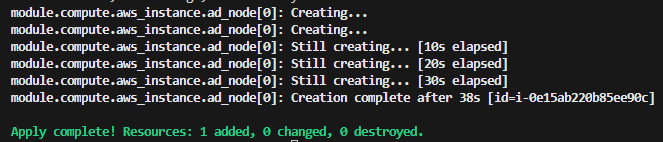

Once this had come online, I added userdata parameters within the Terraform code to install products and services onto the instance and then to promote it to a Domain Controller.

I locked down DC Ingress on port 3389 to my IP address only and was able to successfully RDP and log into my Domain Controller.

After the environment came online, it was configured with a local storage state only, meaning difficulties in collaboration and scalability.

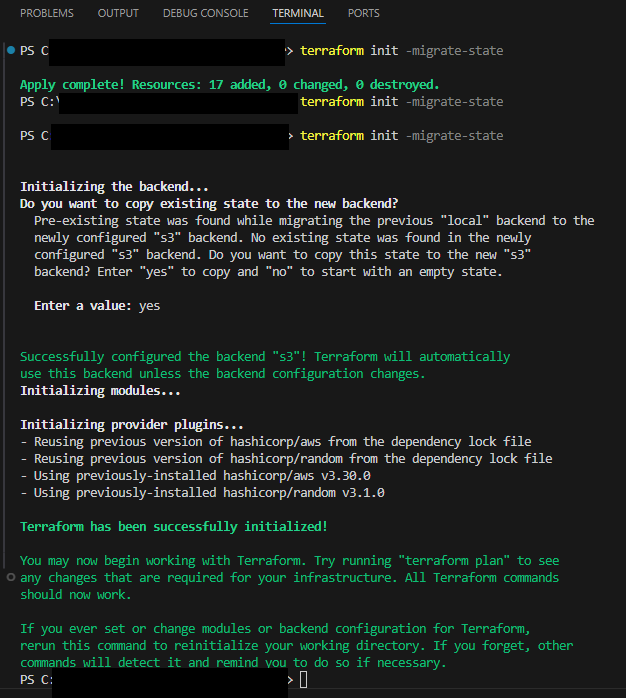

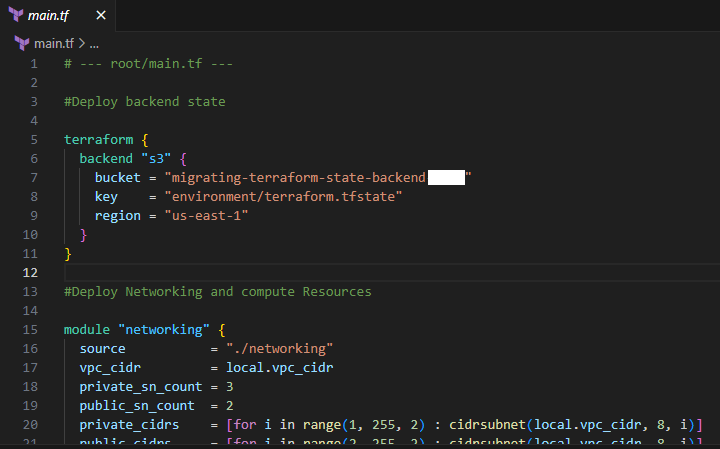

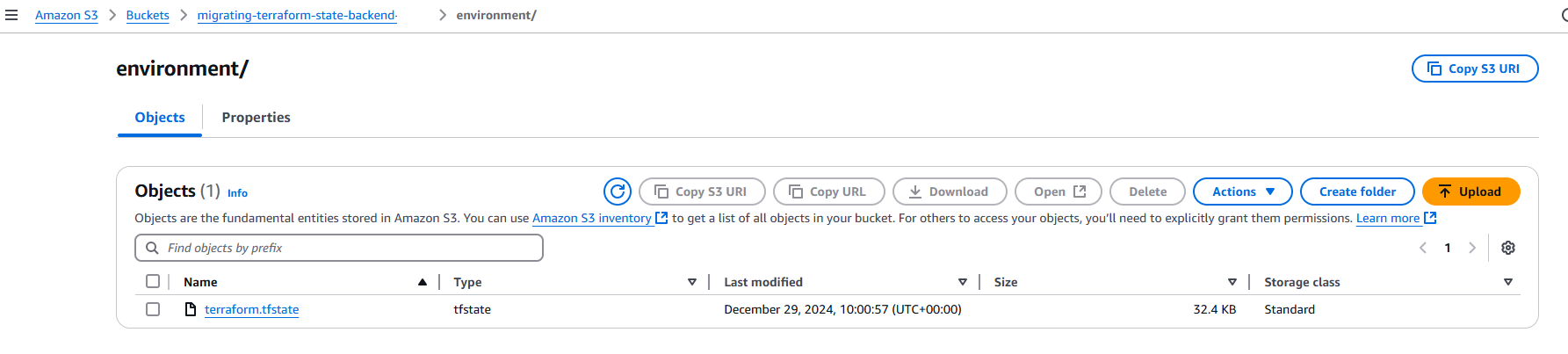

I created a new S3 bucket and added some new configuration code to my main.tf file. After this, I ran a “terraform init -migrate-state” command in my vscode window to execute the changes.

Terraform detected my amendments and prompted me to confirm my changes before initiating a migration of the local state file to my new S3 bucket.

Holding the state backend file in S3 ensures better security and also enhanced disaster recovery options as well offering a range of other options for team collaboration on a project.

Give it a go!
