Building an event-driven architecture using DynamoDB and EventBridge!

Journey: 📊 Community Builder 📊

Subject matter: Building on AWS

Task: Building an event-driven architecture using DynamoDB and EventBridge!

Using the 6 Pillars of the AWS Well-Architected Framework, Performance Efficiency, Reliability, and Sustainability will be achieved in this build.

This week, I built an event-driven architecture using DynamoDB Streams and EventBridge Pipes.

This project is quite simple but demonstrates how AWS services work together to provide a working solution when notifications are required on specific database conditions.

Resource credit: This architecture was created using guidance from Helio Tarnowski on Medium Here.

What did I use to build this environment?

• AWS Management Console

What is built?

• A DynamoDB Table
• An Eventbridge pipe
• An SNS Topic

In this task, I built an event-driven architecture using three services; DynamoDB, SNS, and EventBridge.

I created a DynamoDB Table with a Partition Key and a Sort Key.

After the table had been created successfully, I turned on the DynamoDB stream option with a ’new image’ type so all changes to my table were captured.

I then switched over to SNS, created a new standard Topic, and subscribed a temporary email address to it.

Once I had confirmed the subscription in my temporary email, I moved over to EventBridge and created a new EB Pipe.

I configured this with a DynamoDB source of my payments database, filtered with a specific Event pattern to monitor for unauthorised payments, and pointed the target to be my SNS Topic.

To test my setup, I returned to my DynamoDB table and manually created a new item using JSON, the first of which was Authorised.

As expected, no email was received as the EventBridge Pipe is listening for unauthorised payments.

I created a new item in my DB table, again with JSON but this time set the authorisation parameter as ‘Not Authorised’.

After checking my email, I noticed that I had a new item waiting. My SNS Topic had delivered an email to me reporting an unauthorised payment in my DynamoDB Table.

This event-driven architecture showed how we can create scalable and resilient applications with only a few AWS products and services.

Next time?

I could broaden my configuration here in the future by doing the following:

• Form the project using IaC and use Terraform to create the environment.
• Create an API with a Cognito Authoriser and schedule PUT items from the Postman platform.

Some of the highlights…

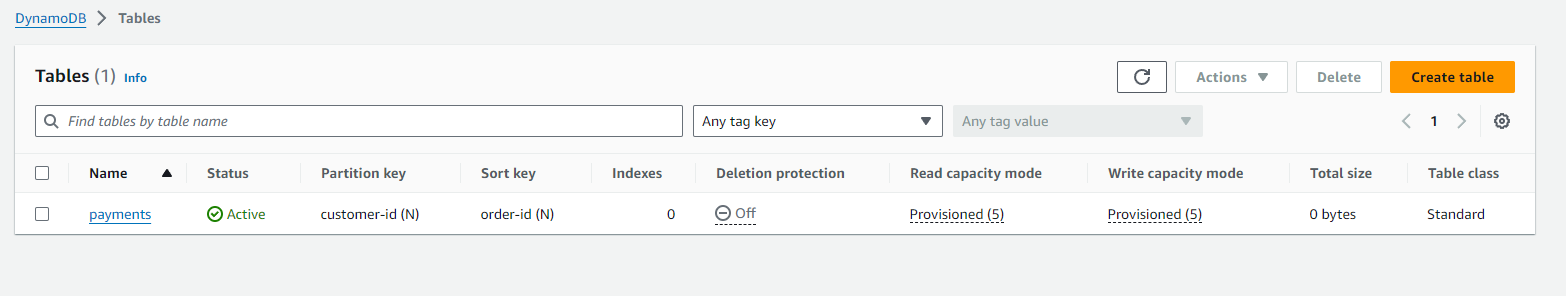

DynamoDB creation:

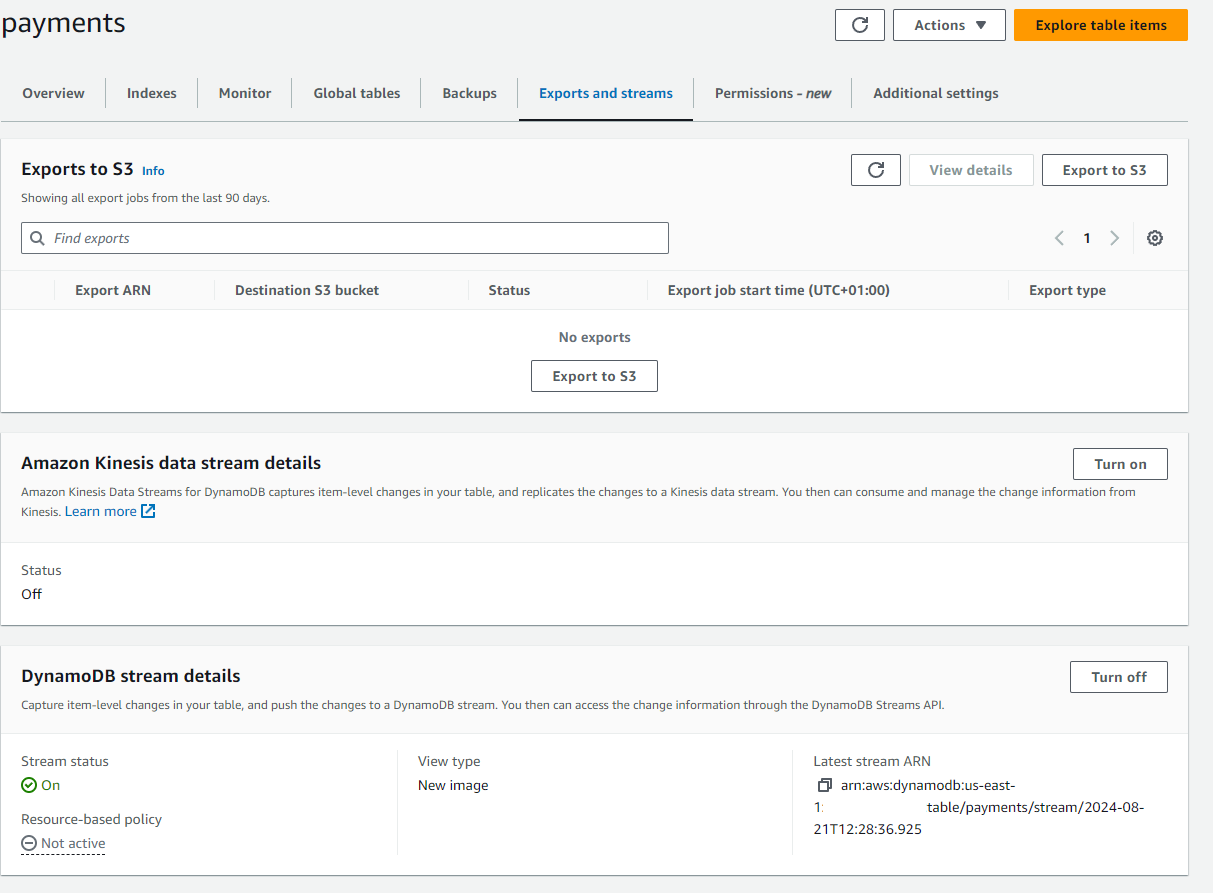

DynamoDB Stream:

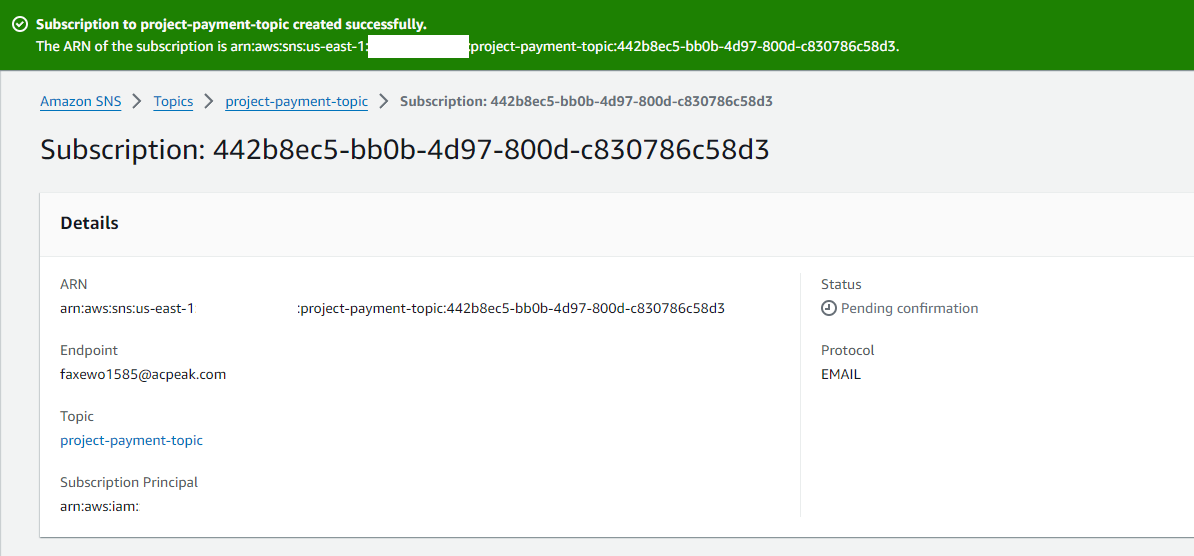

SNS Subscription:

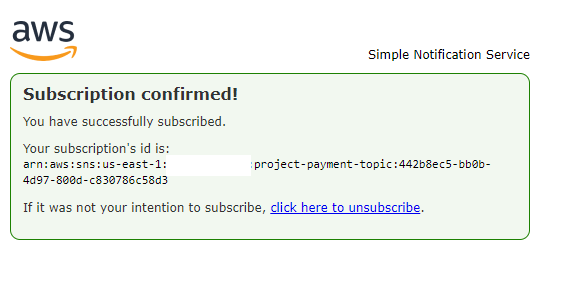

Confirmed Sub:

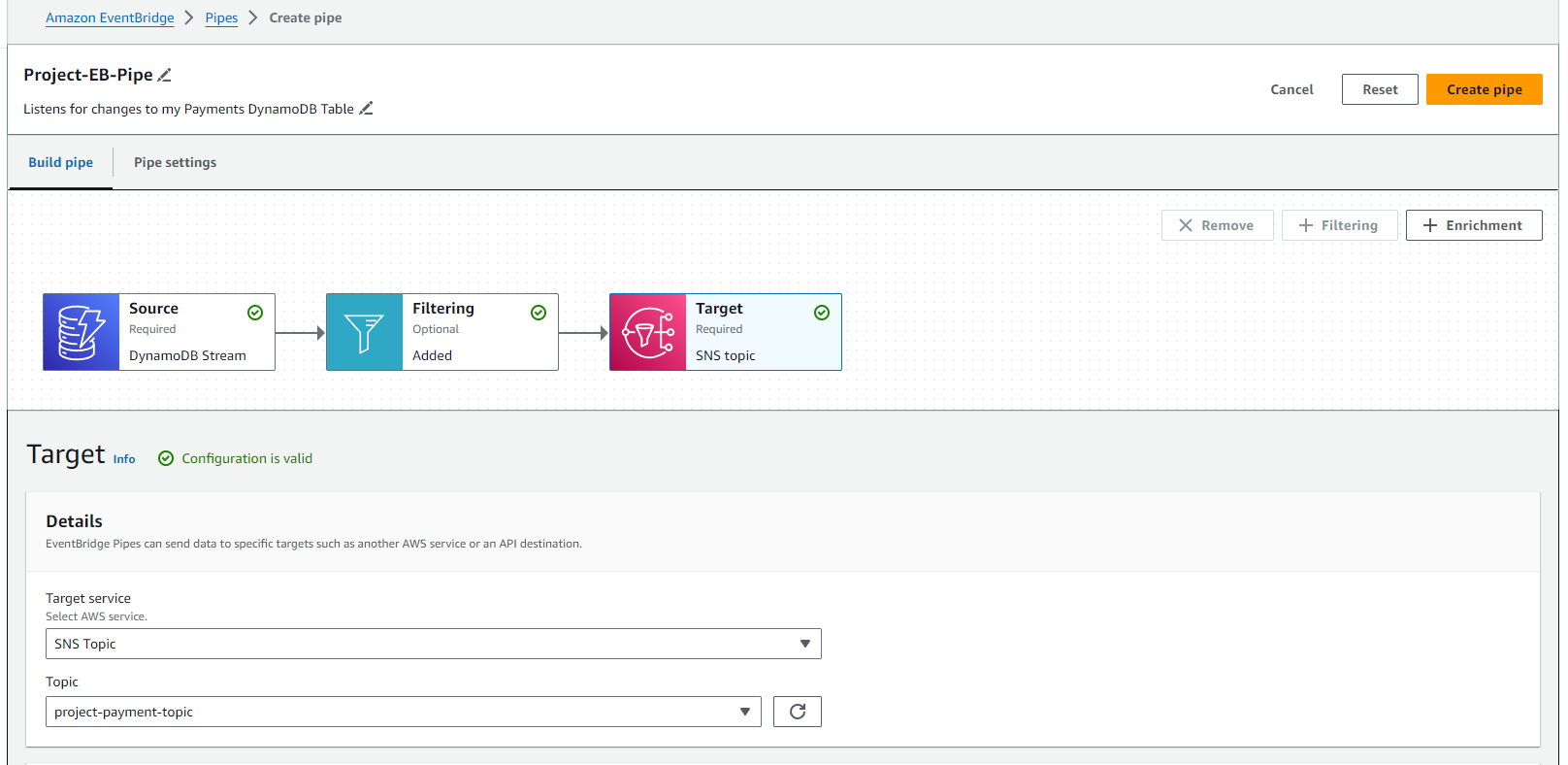

EventBridge Pipe creation:

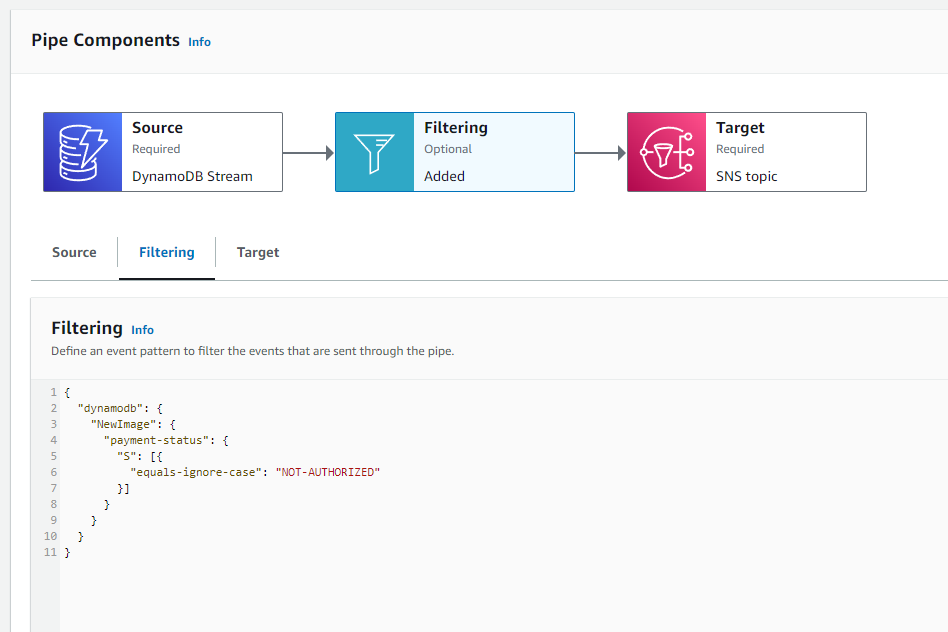

EventBridge Pipe filter:

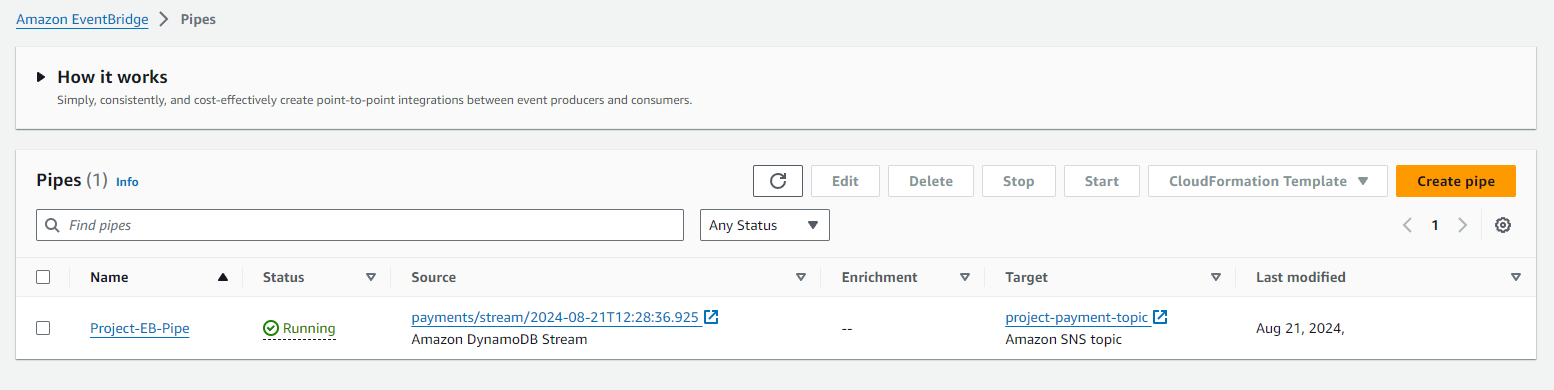

EventBridge Pipe running:

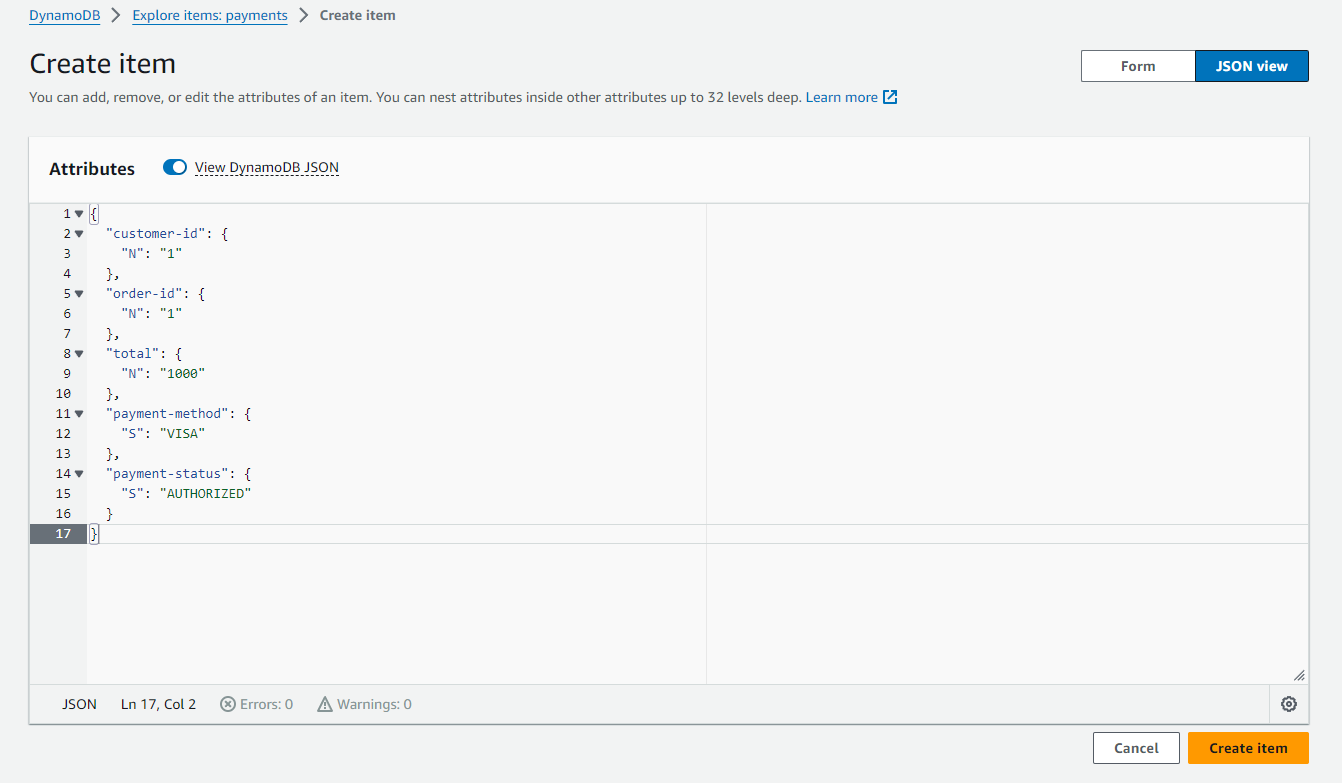

DynamoDB Table authorised item:

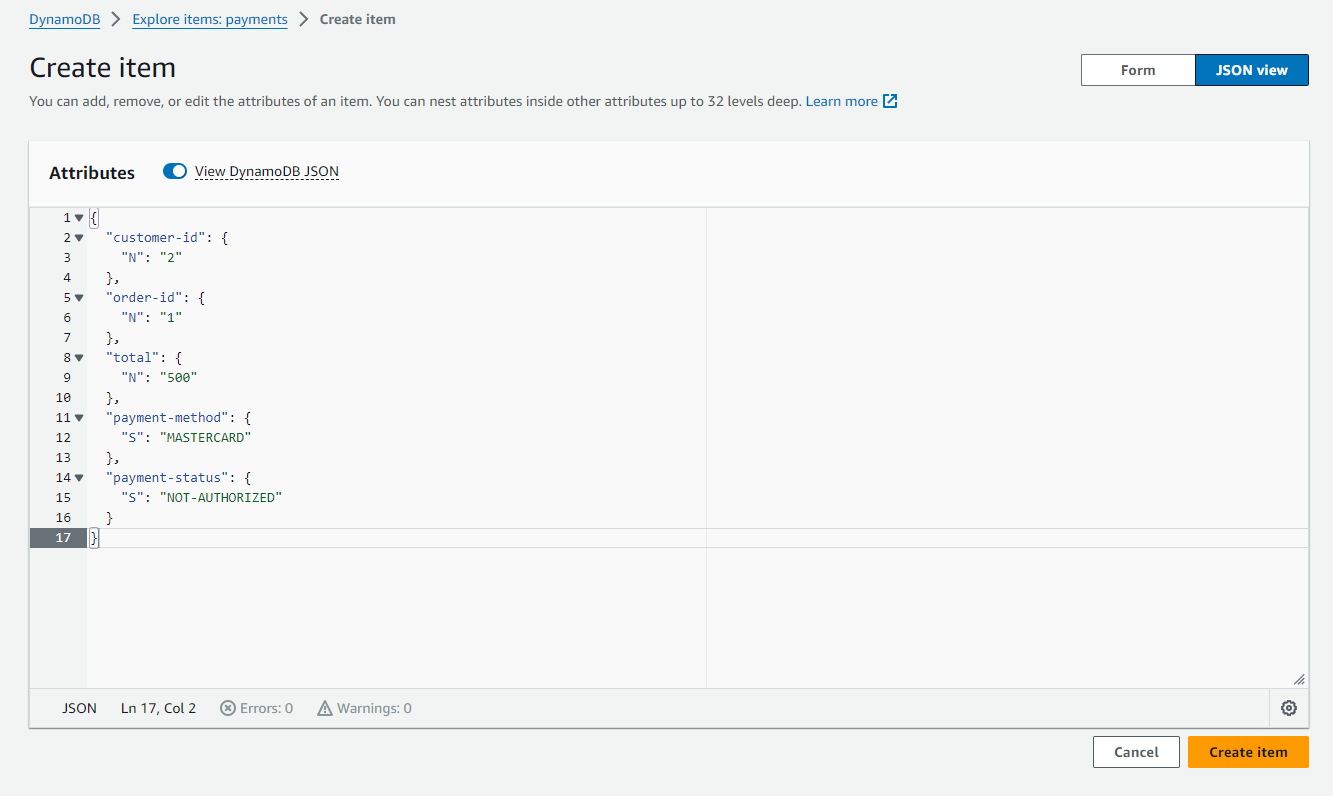

DynamoDB Table unauthorised item:

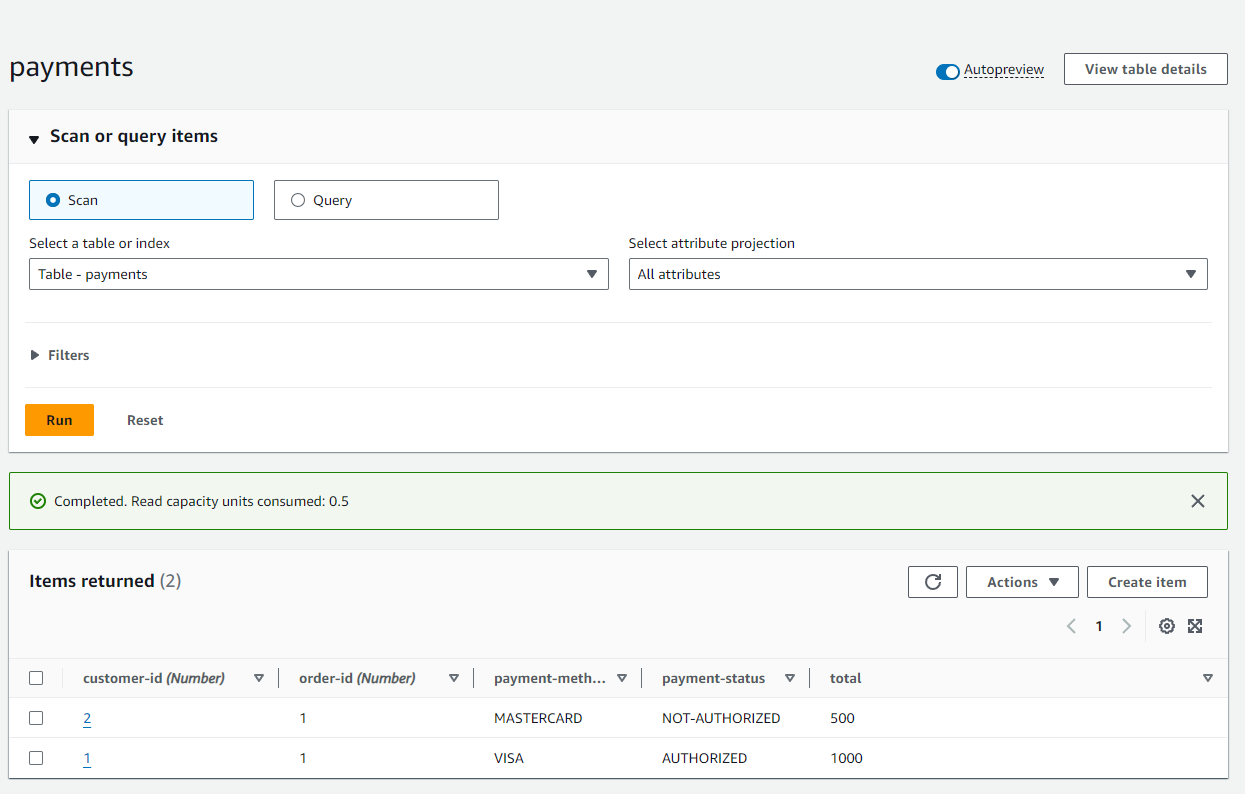

DynamoDB Table display:

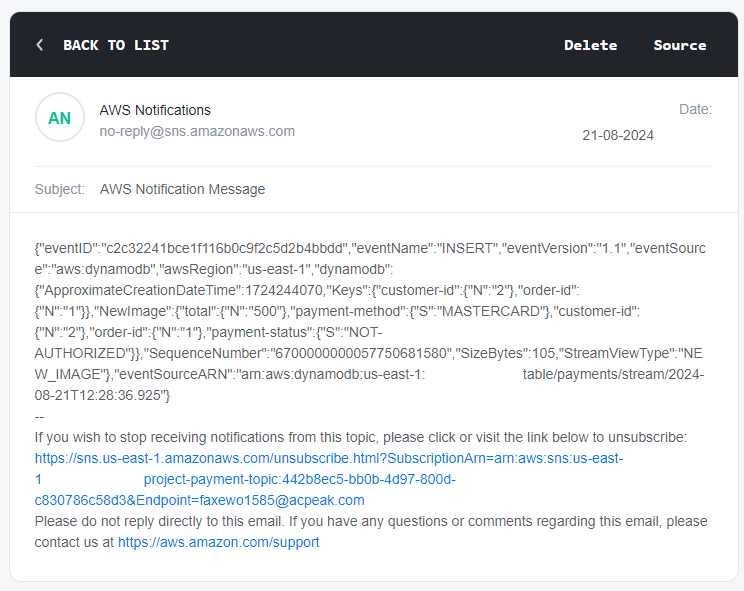

Checking for emails:

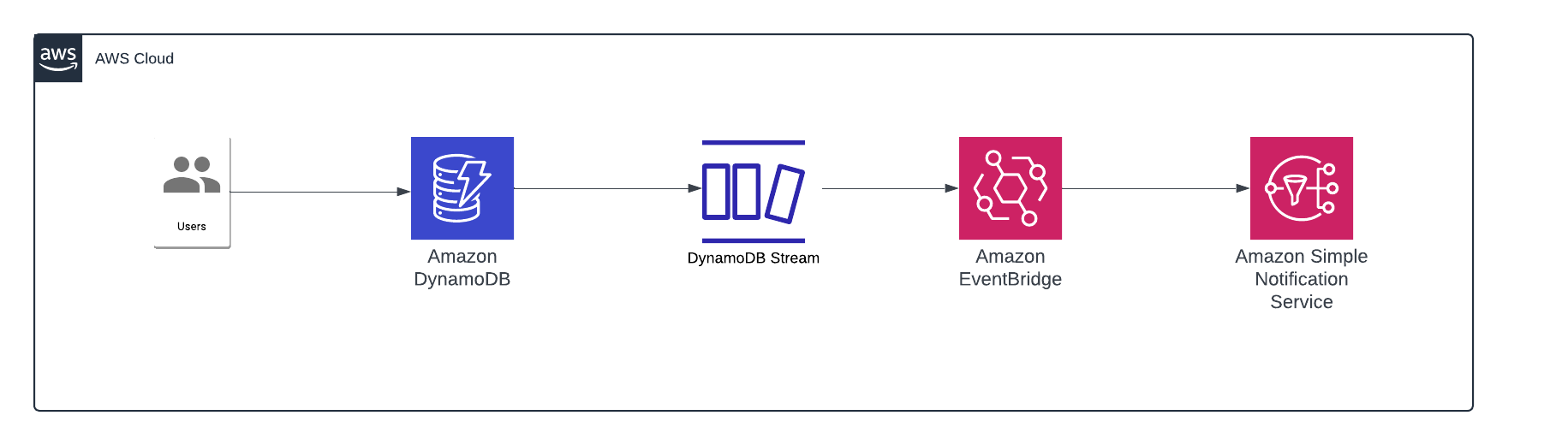

My interpretation of the architecture:

I hope you have enjoyed the article!
